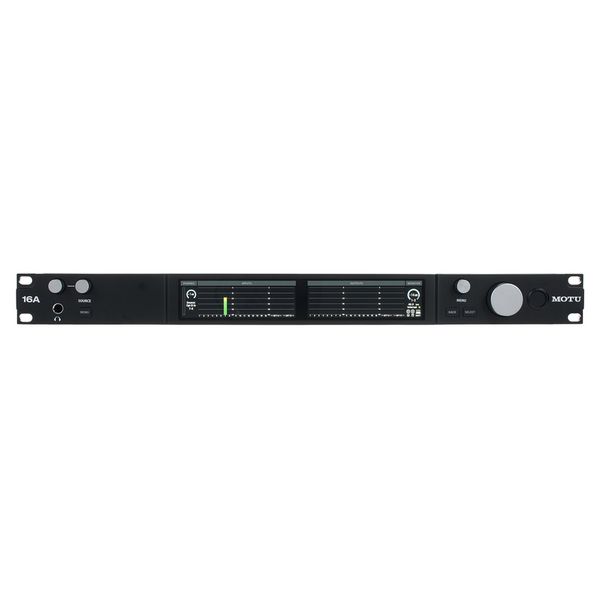

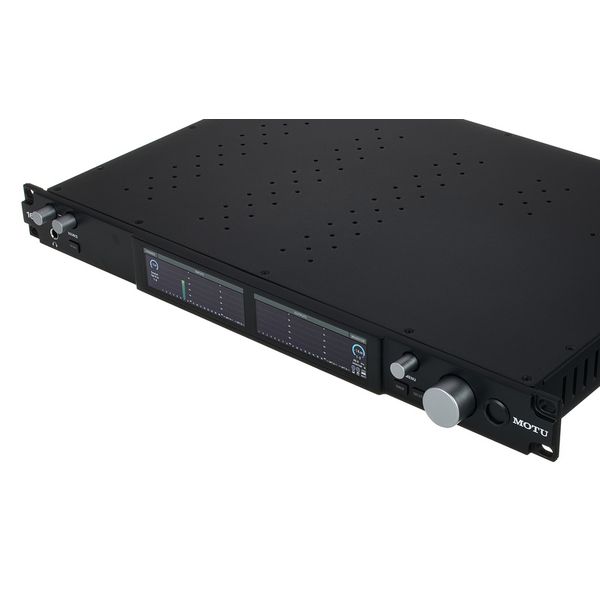

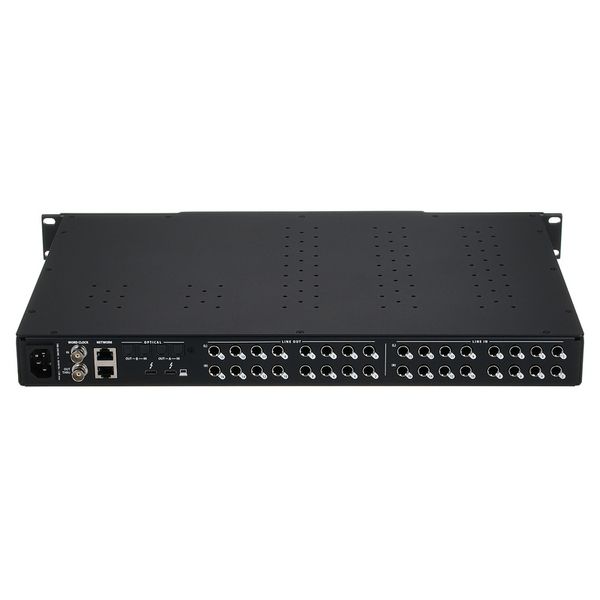

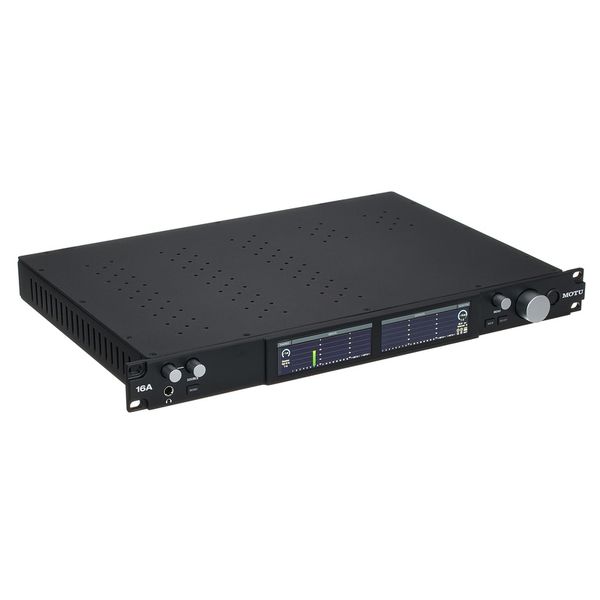

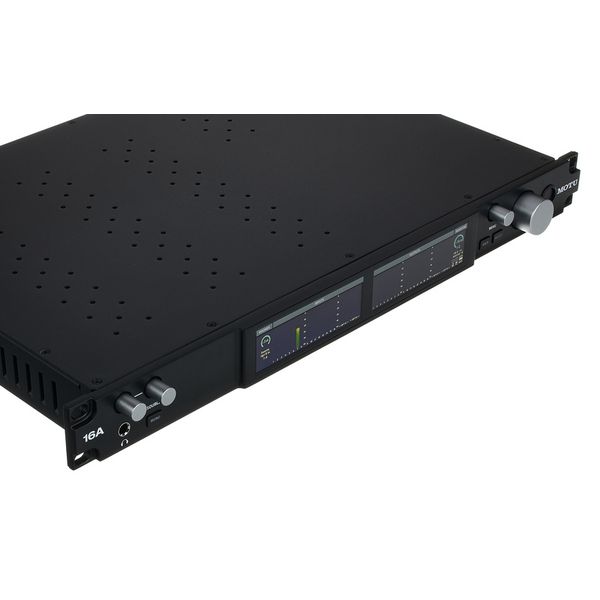

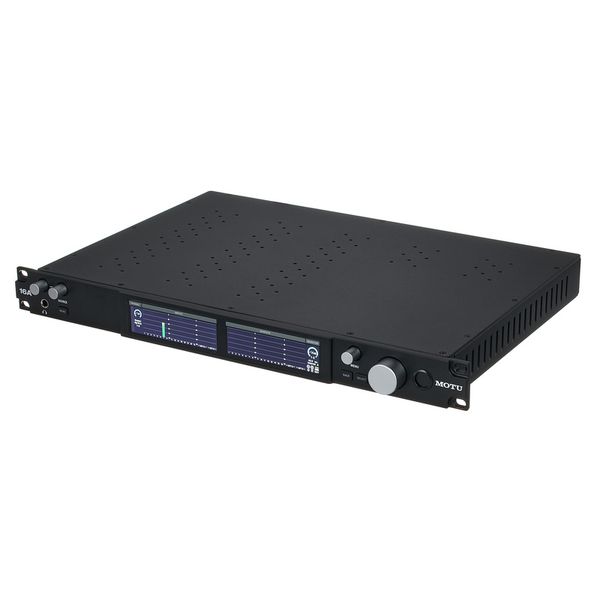

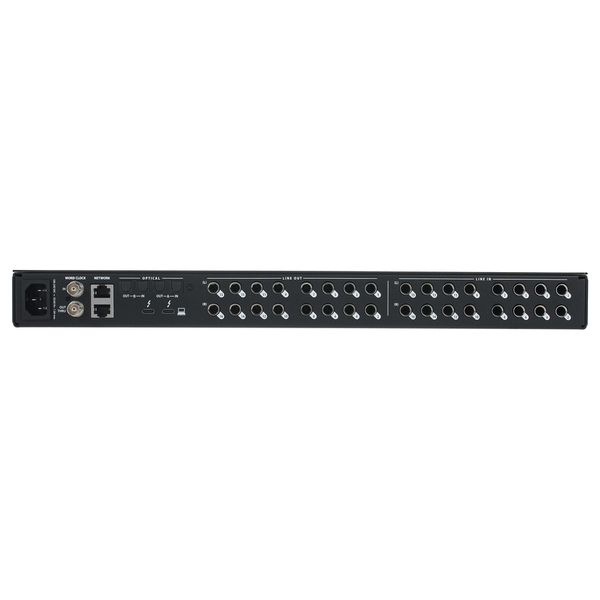

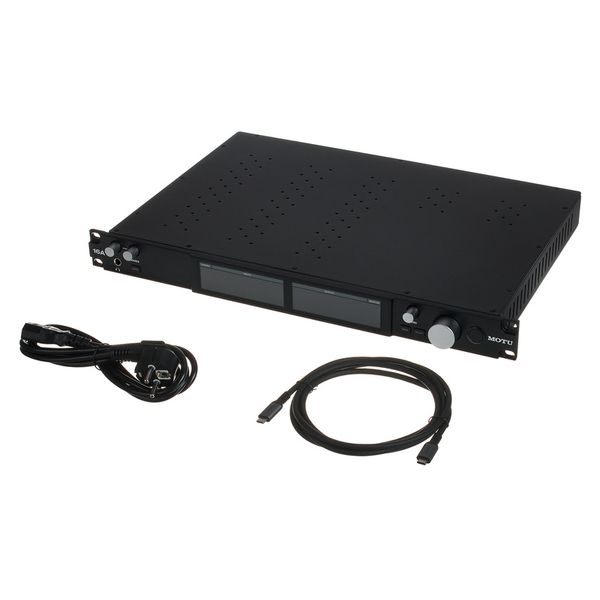

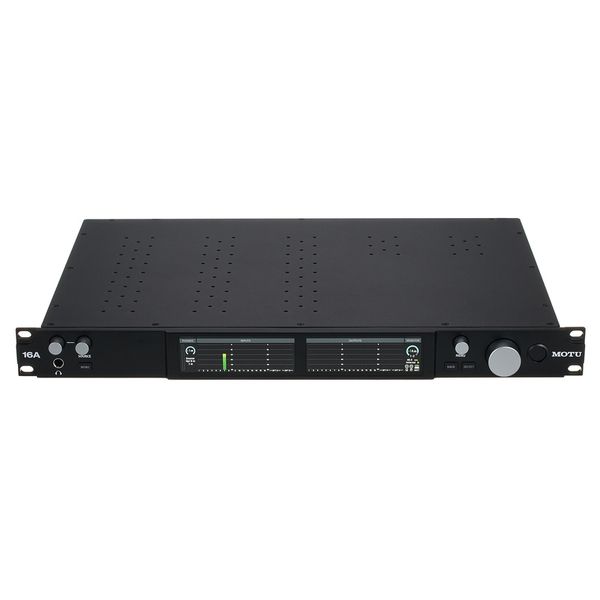

MOTU MOTU 16A (2025); 32 x 34 Thunderbolt/USB/AVB audio interface; 32 inputs x 34 outputs; two 3.9-inch displays for all inputs and outputs; ESS Sabre32 Ultra DAC technology; DSP-controlled mixer with 64 inputs, 32 busses and DSP effects (reverb, 4-band equaliser, gate, compressor and high-pass filter); patchbay routing to route any source signal to any destination; 2x Gigabit Ethernet ports support AVB daisy chaining and networking with standard CAT 5/6 cables; 16x 8-channel AVB streams inputs and outputs (128 total audio channels); Wi-Fi control via the CueMix Pro app; network management functions (detection and control of multiple devices on the network); control room functions such as talkback and A/B/C monitor selection via the CueMix Pro software; headphone output with independent volume control; dynamic range line outputs: 125 dB; dynamic range line inputs: 120 dB; resolution: 24-bit / 192 kHz; connections: 16 balanced, DC-coupled 6.3 mm jack outputs, 16 balanced 6.3 mm jack inputs, 2x ADAT (16 ADAT channels), word clock in/out; incl. 40 Gbps USB-C cable (compatible with Thunderbolt 3/4, USB4, USB3 and USB2): System requirements: Windows 10 or higher, Mac OSX 12 or higher; Dimensions: 482 x 311 x 44 mm; Weight: 5 kg
Conditionnement (UVC)
1 Pièce(s)
Canaux enregistrement/lecture
32x34
Nombre d'entrées microphone
0
Nombre d'entrées ligne
16
Nombre d'entrées instrument
0
Nombre de sorties ligne
16
Fréquence d'échantillonnage max. kHz
192 kHz
Définition max en bit
24 bit
Format de connexion
Port USB type C
Taux d'échantillonnage max. en kHz
192 kHz
Résolution max. en bit
24 bit
Bloc d'alimentation incl.
1
Contenu de la boîte
Logiciel
Monitoring zéro latence
1
